WP Series (Waterproof Outdoor Integrated Led Display)

LED Module Spec.

Pixel Pitch

2.6mm

3.125mm

3.91mm

4.81mm

5.95mm

LED Configuration

SMD1515

SMD1921

Module Resolution(WxH)

96*96

80*80

64*64

52*52

42*42

Module Dimensions (WxHxD)

250mm*250mm

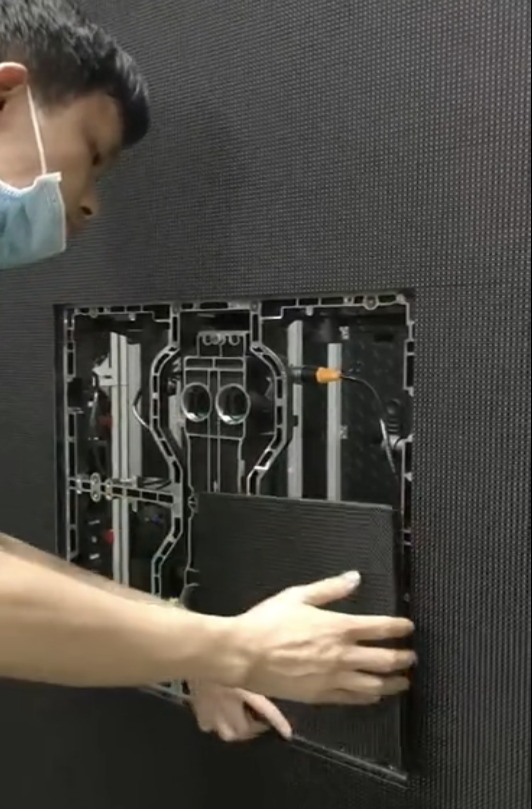

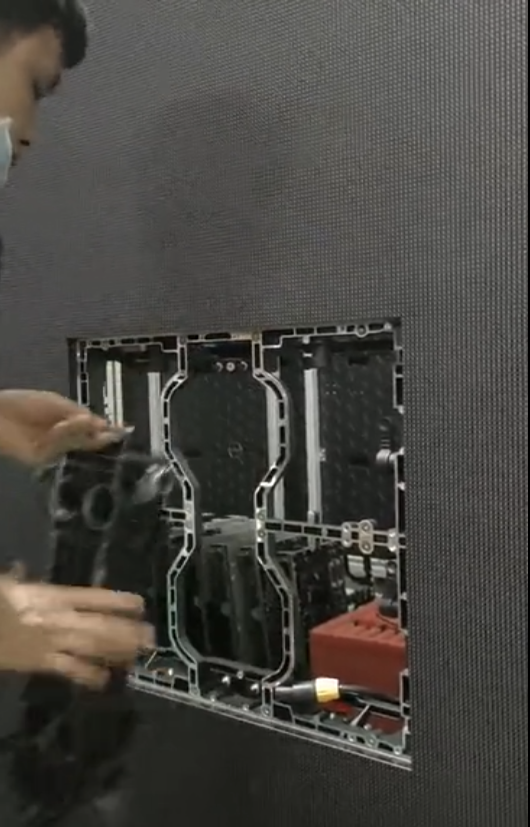

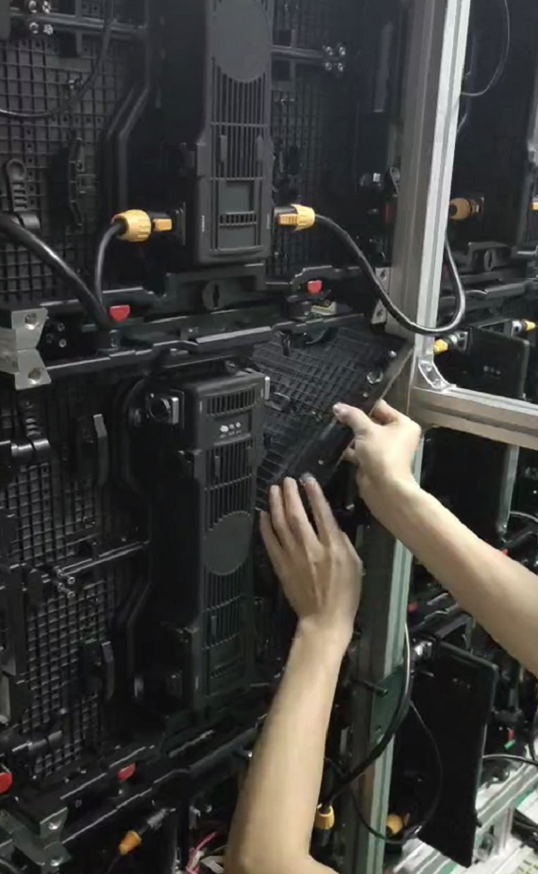

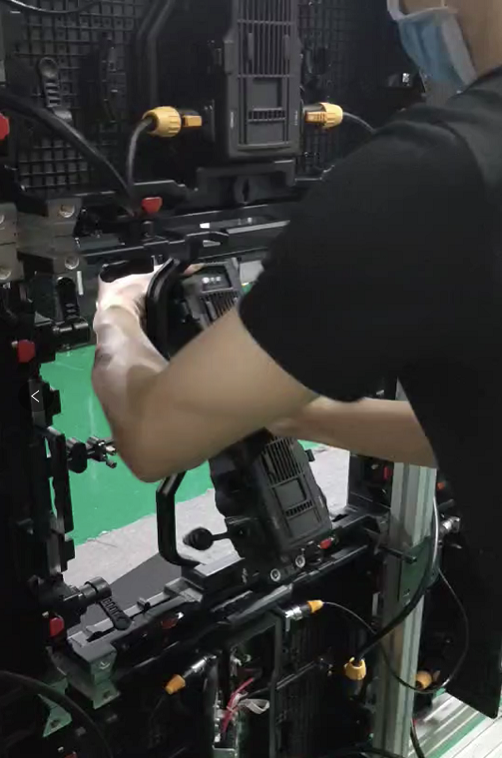

Serviceability

Front and Rear serviceable compatibility

LED Panel Spec.

Pxiel Density

147929pixels

102400pixels

65410pixels

43222pixels

28246pixels

Panel Resolution(WxH)

192*192

160*160

256*256

208*208

168*168

Panel Dimensions(WxHxD)

500*500*88mm

1000*1000*88mm

Panel Weight(Kg)

8kg

32Kg

Panel Size

0.25m²

1m²

Module Configuration

2*2

4*4

Optical Spec.

Brightness

5000nits

Color Temperature

3000-10000( Adjustable)

Viewing Angle(50% brightness)

140° Horizontal, 130° Vertical

Electrical Spec.

Power Consumption(Max./m²)

≤700

≤600

≤650

≤750

≤640

Power Consumption(Avg./m²)

≤280

≤240

≤260

≤300

≤250

Operation Voltage

AC100-240V(50-60Hz)

Processing

Refresh Rate

3840Hz

Frame Rate

60Hz

Grey Scale

16bit

Operation condition

Operating Temp./Humifity

‘-20℃-65℃/10-95%RH

Storage Temp./Humifity

‘-30℃-70℃/10-95%RH

IP Grade

IP65 Outdoor
